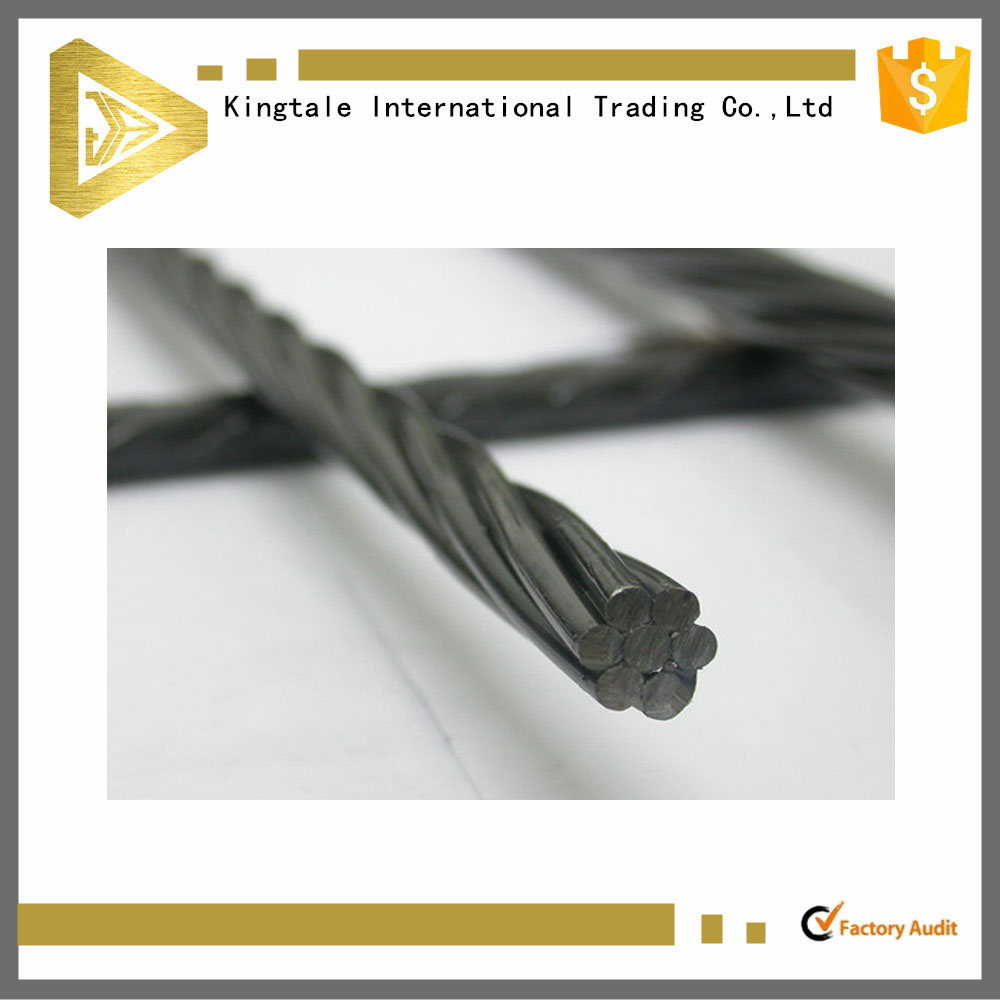

The galvanized steel strand is suitable for messenger wire, guy wire, core wire, earth or ground wire, barrier cable, structure cable, etc.
Standards
The steel strand is in compliance with standards including YB/T 5004-2001, YB/T5004-1993, and YB/T098-1997.

Remark
YB/T 5004-2001: Zinc coated steel wire strands
YB/T5004-1993: Galvanized steel strands
YB/T098-1997: Galvanized steel wire strands for optical cable
The features of the zinc coated steel strand are flexibility ,stability ,reliability and high strength.

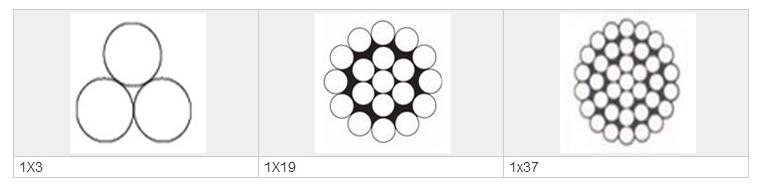

a. It has four cross-section structures shown as below



b. Nominal Tensile Strength: 1 270MPa, 1 370MPa, 1 470MPa, and 1 570MPa
c. According to the zinc coating thickness, zinc layer of the national standard steel strand has three grades, namely Grade A, Grade B, and Grade C.

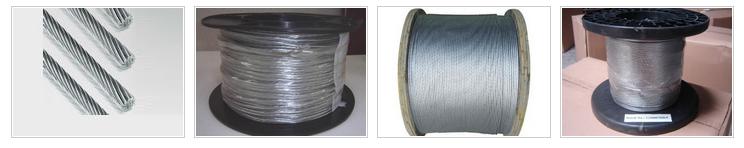

Packing, marking, and quality certificates are carried out in accordance with GB/T 2104 standard. In general case, the steel strand is delivered in coil. Also, it can be packed with waterproof paper, linen, plastic woven cloth, or other packing materials negotiated by both parties.

Diameter (inch)	The number of wires	Nominal diameter of wire (inch)	Minimum breaking force (lbs)					Weight (Lbs/100ft)
			General Purpose	Ordinary Level	Open hearth level	High intensity level	Ultra high strength level
1/8	7	0.041	___	540	910	1330	1830	3.20
5/32	7	0.052	___	870	1470	2140	2940	5.10
3/16	7	0.062	___	1150	1900	2850	3990	7.30
3/16	7	0.065	2400	___	___	___	___	8.00
7/32	3	0.104	___	1400	2340	3500	4900	8.80
7/32	7	0.072	3150	1540	2560	3850	5400	9.80
1/4	3	0.120	4500	1860	3040	4730	6740	11.70
1/4	3	0.120	___	___	___	___	___	11.70
1/4	7	0.080	___	1900	3150	4750	6650	12.10
9/32	3	0.130	4600	2080	3380	5260	7500	13.70
9/32	7	0.093	6500	2570	4250	6400	8950	16.40
5/16	3	0.145	___	2490	4090	6350	9100	17.10
5/16	7	0.104	6000	3200	5350	8000	11200	20.50
5/16	7	0.109	8500	___	___	___	___	22.50
3/8	3	0.165	11500	3330	5560	8360	11800	22.00
3/8	7	0.120	11500	4250	6950	10800	15400	27.30
7/16	7	0.145	18000	5700	9350	14500	20800	39.90
1/2	7	0.165	25000	7400	12100	18800	26900	517.0
1/2	19	0.100	___	7620	12700	19100	26700	50.40
9/16	7	0.188	___	9600	15700	24500	35000	67.10
9/16	19	0.113	___	9640	16100	24100	33700	63.70
5/8	7	0.207	___	11600	19100	29600	42400	81.30
5/8	19	0.125	___	11000	18100	28100	40200	79.60
3/4	19	0.150	___	16000	26200	40800	58300	115.50
7/8	19	0.177	___	21900	35900	55800	79700	158.10
1	19	0.200	___	28700	47000	73200	104500	207.30
1	37	0.143	___	28300	46200	71900	102700	205.70
1-1/8	37	0.161	___	36000	58900	91600	130800	269.10
1-1/4	37	0.179	___	44600	73000	113600	162200	324.80
