The wire rope -18X7 non-rotation can be precisely divided in to micro-rotating,semi-rotating, and rotation resistance wire rope.This kind of wire rope is made by firstly stranding six wire coils ,then twisting these strands,and combining the twisted strands by certain equipment.

The non-rotation steel wire rope is also called multi-strand wire rope .Gaosheng provide different wire ropes of various categories such as 35W*7 series, 18*7 series, 19*7 series, 18*19S series, and 24W*7 series which are with higher breaking strength and better abrasion resistance.

All those series of the steel wire rope have been galvanizing and polishing treated with same or different twisted direction .The product can be processed with different surface treatment such as lubrication ,plastic dipping and so on .

Structure: 18*7
Diameter: 6~50mm
Surface Treatment: Hot galvanizing, electro galvanizing, polishing
Tensile Strength: 1570mpa, 1670mpa, 1770mpa, 1870mpa, 1960mpa
Standards: GB, JIS, RR-W, API, or as requested by clients
Application: Cranes, elevator, and general engineering
Features: Good abrasion resistance and long fatigue life

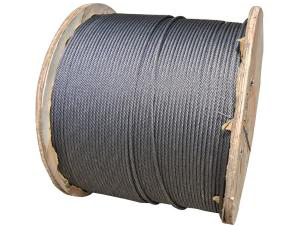

Package: Wooden spool

The non-rotating steel wire rope is widely applied for the hoisting and dragging equipment under the impact load , heated or squeezed condition.The steel wire rope of different diameter is suitable for different cranes.For example,a wire rope with the diameter of 12mm-28mm is suitable for truck crane,portal crane,electric hoist crane,etc.

1. During the transit, please handle it with care for preventing the outer packing materials from being collided.
2. Avoid contact with moisture and rainwater. The non-rotating steel wire rope should be placed in the dry, ventilated indoor environment.
3. Mind the direction of wire pay-off and take-up, so as to avoid additional stress.
4. In the workplace, pay attention to the threading direction, thus to avert the additional stress and wire bending.
