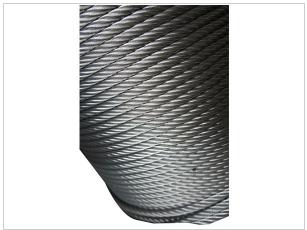

Wire rope-18X19S non-rotation is softer than 18*7 series of the same diameter. It is a kind of linear contact lay steel wire rope.
Gaosheng has 35W*7 series, 18*7 series, 19*7 series, 18*19S series, and 24W*7 series of non rotating steel wire rope ,also called multi-strand wire rope.

Twisted in the same or different direction ,all those series have been galvanizing and polishing treated.The product can be processed with different surface treatments ,such as instance ,lubrication,plastic dipping with higher breaking force and better abrasion resistance to meet your requirement.

Structure: 18*19S
Diameter: 6~50mm
Surface Treatment: Hot galvanizing, electro galvanizing, polishing
Tensile Strength: 1570mpa, 1670mpa, 1770mpa, 1870mpa, 1960mpa
Standard: GB, JIS, RR-W, API, or as requested by clients
Application: Crane, elevator, and general engineering
Features: Good abrasion resistance and long fatigue life

Diameter (mm)	Approximate weight （kg/100m)		Minimum breaking force
			1570		1670		1770		1870		1960		2160
			Minimum breaking force（KN)
	fibre core	Steel core	fibre core	Steel core	fibre core	Steel core	fibre core	Steel core	fibre core	Steel core	fibre core	Steel core	fibre core	Steel core
6	14.0	15.5	17.5	18.5	18.6	19.7	19.8	20.9	20.9	22.1	21.9	23.1	24.1	25.5
7	19.1	21.1	23.8	25.2	25.4	26.8	26.9	28.4	28.4	30.1	29.8	31.5	32.8	34.7
8	25.0	27.5	31.1	33.0	33.1	35.1	35.1	37.2	37.1	39.3	38.9	41.1	42.9	45.3
9	31.60	34.8	39.4	41.7	41.9	44.4	44.4	47.0	47.0	49.7	49.2	52.1	54.2	57.4
10	39.0	43.0	48.7	51.5	51.8	54.8	54.8	58.1	58.0	61.3	60.8	64.3	67.0	70.8
11	47.20	52.0	58.9	62.3	62.6	66.3	66.3	70.2	70.1	74.2	73.5	77.8	81.0	85.7
12	56.20	61.9	70.1	74.2	74.5	78.9	78.9	83.6	83.6	88.3	87.5	92.6	96.4	102
13	65.90	72.7	82.3	87.0	87.5	92.6	92.6	98.1	98.1	104	103	109	113	120
14	76.40	84.3	95.4	101	101	107	107	114	114	120	119	126	131	139
16	99.80	110	125	132	133	140	140	149	149	157	156	165	171	181
18	126	139	158	167	168	177	177	188	188	199	197	208	217	230
20	156	172	195	206	207	219	219	232	232	245	243	257	268	283
22	189	208	236	249	251	265	265	281	281	297	294	311	324	343
24	225	248	280	297	298	316	316	334	334	353	350	370	386	408
26	264	291	329	348	350	370	370	392	392	415	411	435	453	479
28	306	337	382	404	406	429	429	455	454	481	476	504	525	555
30	351	387	438	463	466	493	493	523	522	552	547	579	603	638
32	399	440	498	527	530	561	561	594	594	628	622	658	686	725
34	451	497	563	595	598	633	633	671	671	709	702	743	774	819
36	505	557	631	667	671	710	710	752	751	795	787	833	868	918
38	563	621	703	744	748	791	791	838	837	886	877	928	967	1020
40	624	688	779	824	828	876	876	929	928	981	972	1030	1070	1130
42	688	759	859	908	913	966	966	1020	1020	1080	1070	1130	1180	1250
44	755	832	942	997	1000	1060	1060	1120	1120	1190	1180	1240	1300	1370

Package: Wooden spool

This non-rotating steel wire rope is suited for hoisting and dragging equipment with various working condition such as impact load ,heated or squeezed condition.As the steel cord wire rope of different diameter is suitable for different cranes ,a wire rope with the diameter of 12mm-28mm is suitable for truck crane ,portal crane,electric hoist crane,etc.

1. During the transit, please handle it with care for preventing the outer packing materials from being collided.
2. Avoid contact with moisture and rainwater. The non-rotating steel wire rope should be placed in the dry, ventilated indoor environment.
3. Mind the direction of wire pay-off and take-up, so as to avoid additional stress.
4. In the workplace, pay attention to the threading direction, thus to avert the additional stress and wire bending.
