The wire rope clip is a commonly used serviceable accessory in condition that there is something wrong with splicing or socketing of the wire .A rope clip can help to hold two ends of the rope together firmly by providing temporary joints to create a strong connection.It can also be applied to the rope end ready for fixing so as to form a complete loop.Special specification and marks of this wire rope clamp can be made according to clients' requirements. The wire rope accessory has two types as below:

Standard: DIN741
Material: Malleable
Surface: Electro galvanization, hot dipped galvanization
Size: 3mm-50mm
Special specification and marks can be made in accordance with the clients' requirement.

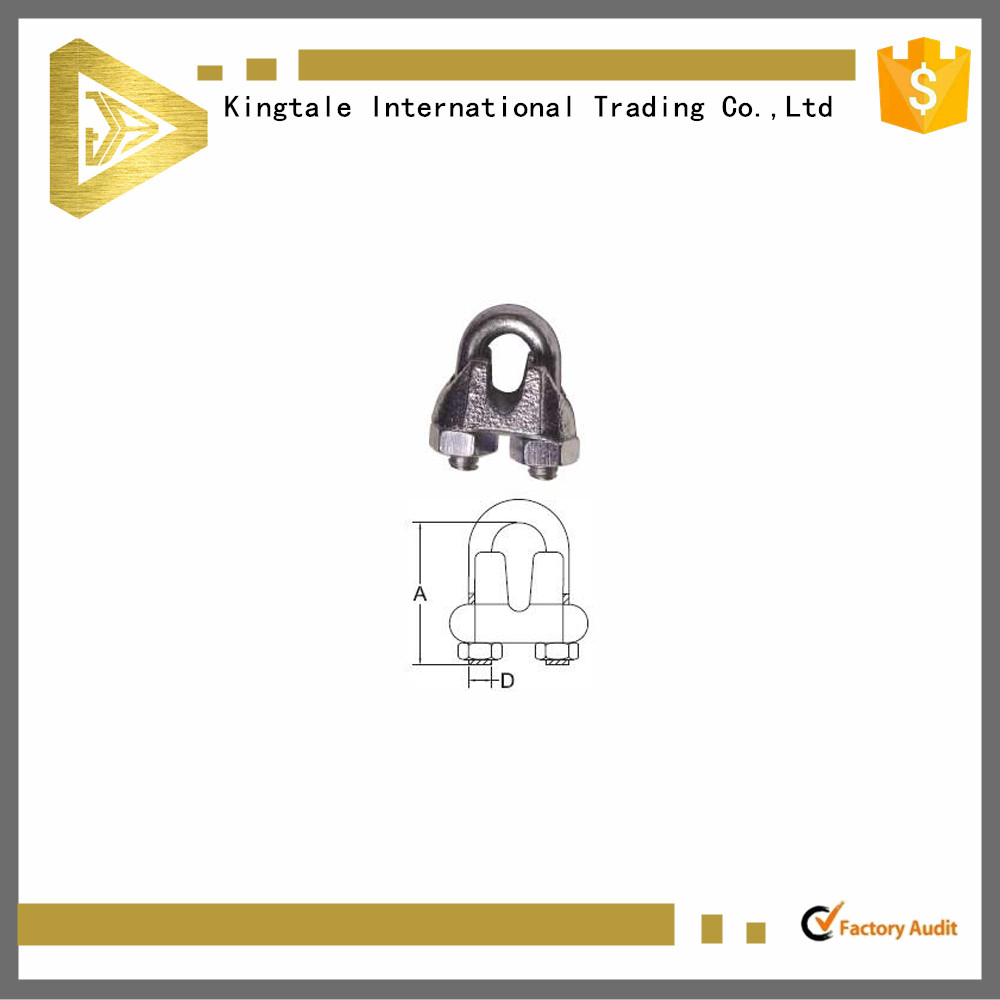

Rope diameter (Inch)	Size.Inch		Folded length   (Inch)	Weight/ea. pound
	A	D
1/16	0.630	8-32	3	0.03
3/32-1/8	0.780	10-24	4 3/4	0.04
3/16	0.875	10-24	5 1/2	0.06
1/4	1.188	5/16-18	7	0.12
5/16	1.188	5/16-18	7 3/4	0.14
3/8	1.563	3/8-18	9 1/2	0.21
7/16	1.625	3/8-18	10 1/4	0.27
1/2	2.000	7/16-14	15 1/4	0.35
5/8	2.313	1/2-13	16	0.58
3/4	2.563	9/16-12	22 1/4	0.84
7/8	3.063	5/8-11	23 1/2	1.24
1	3.375	5/8-11	31	1.50
1 1/8	3.875	3/4-10	39 1/2	2.60
1 1/4	3.875	3/4-10	50	3.60
