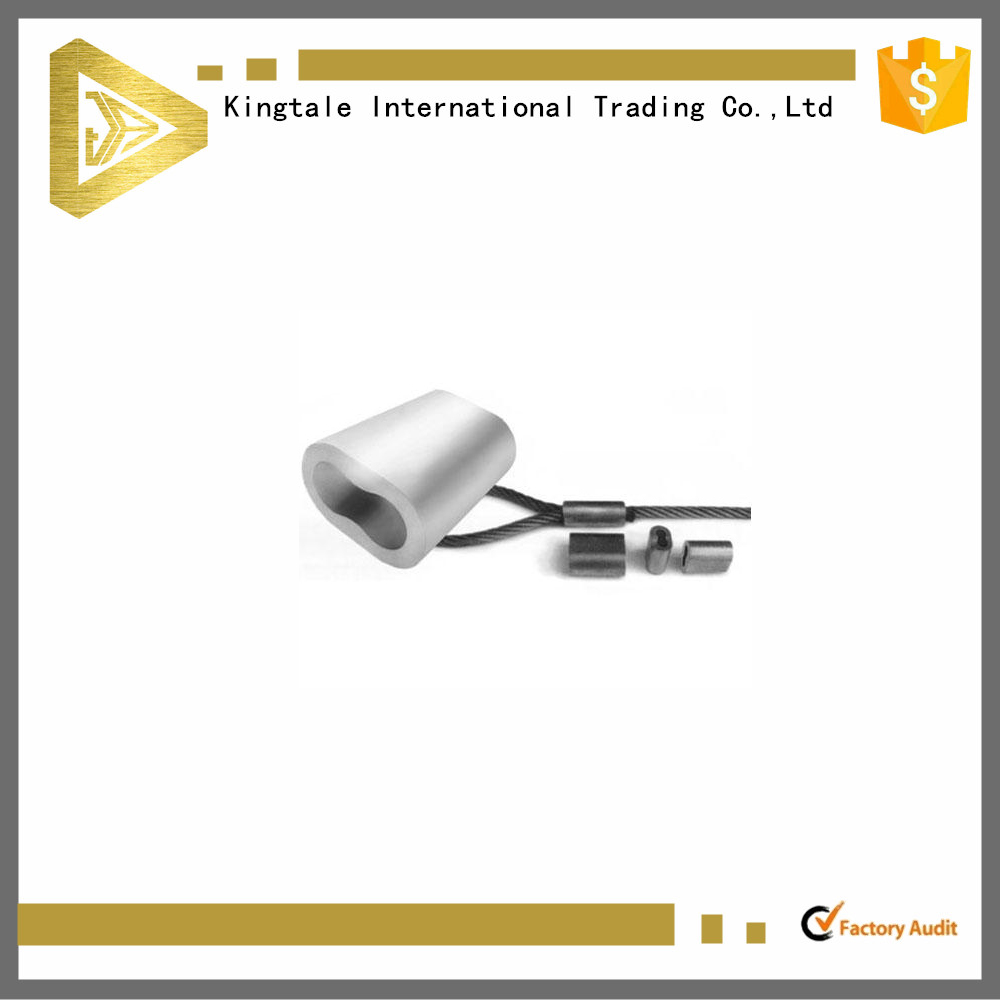

The raw materials for making the aluminum wire rope ferrules is chosen strictly according to the requirements of JIS standard for the safety in fabrication and application.

Ferrule Diameter	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)
6	7	13.8	3.2	3.8	24
8	9.4	18.6	4	4.7	32
9	10.22	20.7	4.3	5.52	36
10	11.60	23	4.5	5.5	40
12	13.62	27.6	5.3	6.92	48
14	15.89	32.2	5.53	7.42	56
16	18.16	36.8	6.32	8.48	64
18	20.43	41.4	7.11	9.54	72
20	23.1	46	7.7	9.2	80
22	25.4	50.6	8.3	10	88
24	27.8	55.3	8.9	10.9	96
26	29.9	59.8	10.7	12.9	104
28	32.2	64.4	11.3	13.6	112
30	34.5	69	11.8	14.3	120
32	36.8	73.6	12.5	15.2	128
