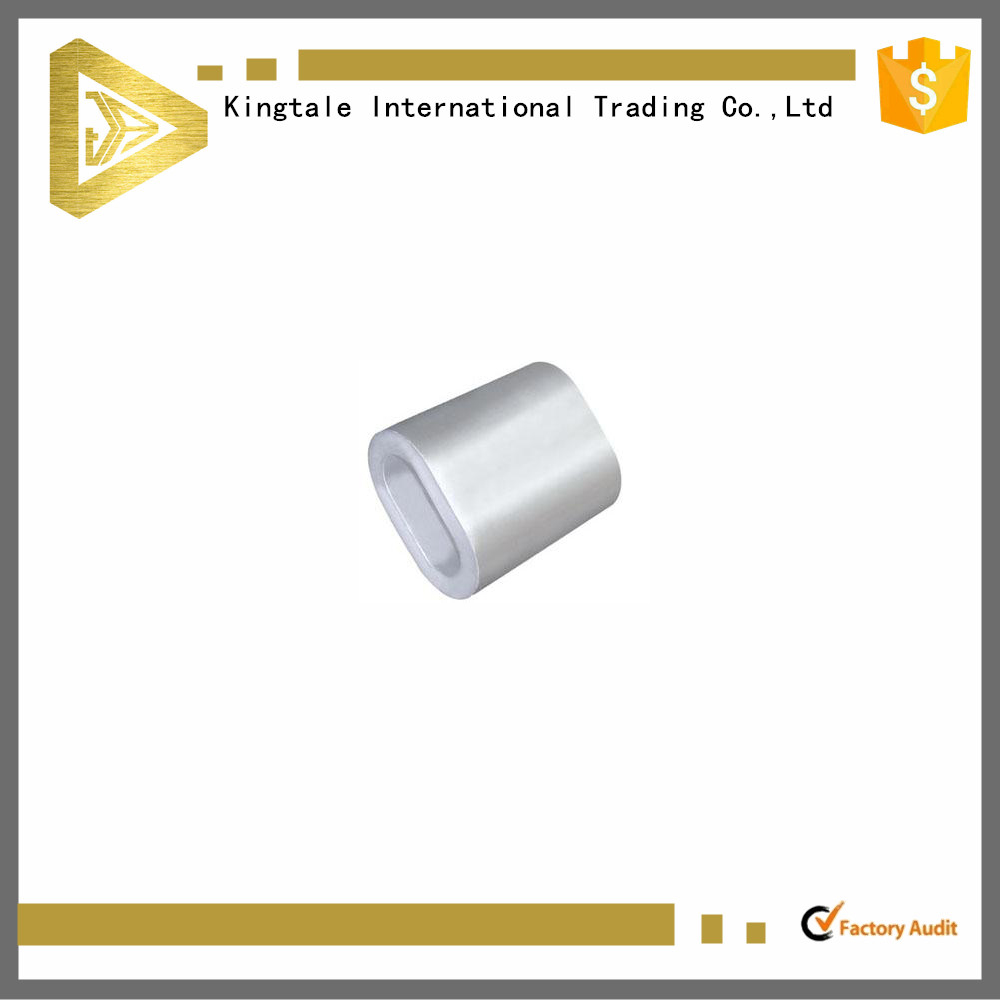

The oval aluminum wire rope ferrule is extruded from a high quality aluminum alloy. It has been heat treated for excellent cold forming or swaging qualities. Extruded from a high quality aluminum alloy,heat treated ,the oval aluminum wire rope ferrule has excellent cold forming and swaging qualities., the return eye splice of this aluminum sleeveshould be properly swaged to attain 95% of the improved plow wire rope catalog strength.

Before using the oval aluminum ferrule, the return eye splice must be properly swaged to attain enough strength.

Size	A (Inch)	B (Inch)	C (Inch)	D (Inch)	L (Inch)	Weight Lb/100Pcs
1/4"	19/64	19/32	17/32	27/32	1	2.3
5/16"	3/8	3/4	21/32	1  1/32	1 17/84	4.3
3/8"	7/16	27/32	3/4	1  5/32	1  3/8	5.3
7/16"	1/2	1	29/32	1 13/32	1 23/32	11
1/2"	19/32	1 11/64	1 1/32	1  5/8	1 15/16	16.5
9/16"	23/32	1  3/8	1 7/32	1 57/64	2  7/32	22
5/8"	3/4	1  1/2	1 3/8	2  3/32	2  1/2	32
3/4"	53/64	1 11/16	1 1/2	2  3/8	2  7/8	52
7/8"	61/64	1  7/8	1 11/16	2  5/8	3	67
1"	1  3/32	2  7/32	1 31/32	3  3/32	3  3/4	125
1 1/8"	1  9/32	2  9/16	2 5/16	3 19/32	4  9/32	172
1 1/4"	1 13/32	2 25/32	2 1/2	3  7/8	4  7/16	214
1 1/2"	1 21/32	2 19/34	3 1/8	4  3/4	5 35/64	390
